How To Add a Gate To an Existing Fence

How To Add a Gate To an Existing Fence

Adding a gate to an existing fence can greatly enhance the accessibility, security, and usability of your property. In this guide, we’ll explore the process of adding a gate to different types of fences, providing step-by-step instructions tailored to wood and vinyl fences.

Can You Add a Gate to an Existing Fence?

Yes, you can add a gate to an existing fence without any issues. The fence will continue to maintain its functionality and aesthetic appeal. Adding a gate is common and can serve various purposes, such as improving accessibility and enhancing security. With proper planning and execution, integrating a gate into your fence is a straightforward task.

Where To Add a Gate To an Existing Fence

When considering how to add a gate to an existing fence, there are three primary options to choose from, each with its own considerations and level of complexity:

Between two existing posts

This is the simplest solution as it requires minimal disassembling and reassembling of the fence. However, it can be challenging because you might need a custom-sized gate since the posts are usually not set up to fit standard-sized gates.

Next to an existing post

Installing a gate next to an existing post involves reusing one of the support posts of the fence. By doing so, you only need to add one additional support, simplifying the installation process. This method can use a standard-sized gate since you can decide where the new post is placed along the fence line, accommodating the dimensions of a standard gate.

In the middle of an existing fence line

This option is the most complicated but also the most flexible. It involves installing two new support posts to create the gate opening within the existing fence line.

Despite its complexity, this method offers several benefits. It allows for converting a portion of the fence into a gate, allowing the freedom to place it wherever desired along the fence line. Additionally, you can customize the size of the gate to fit your specific needs, whether you prefer a single or double gate configuration.

How to Add a Gate to an Existing Fence

Installing a gate in an existing wooden or vinyl fence involves careful planning, precise measurements, and the right tools. Follow these instructions to achieve a professional finish and ensure your new gate operates smoothly.

How To Add a Gate To an Existing Wood Fence

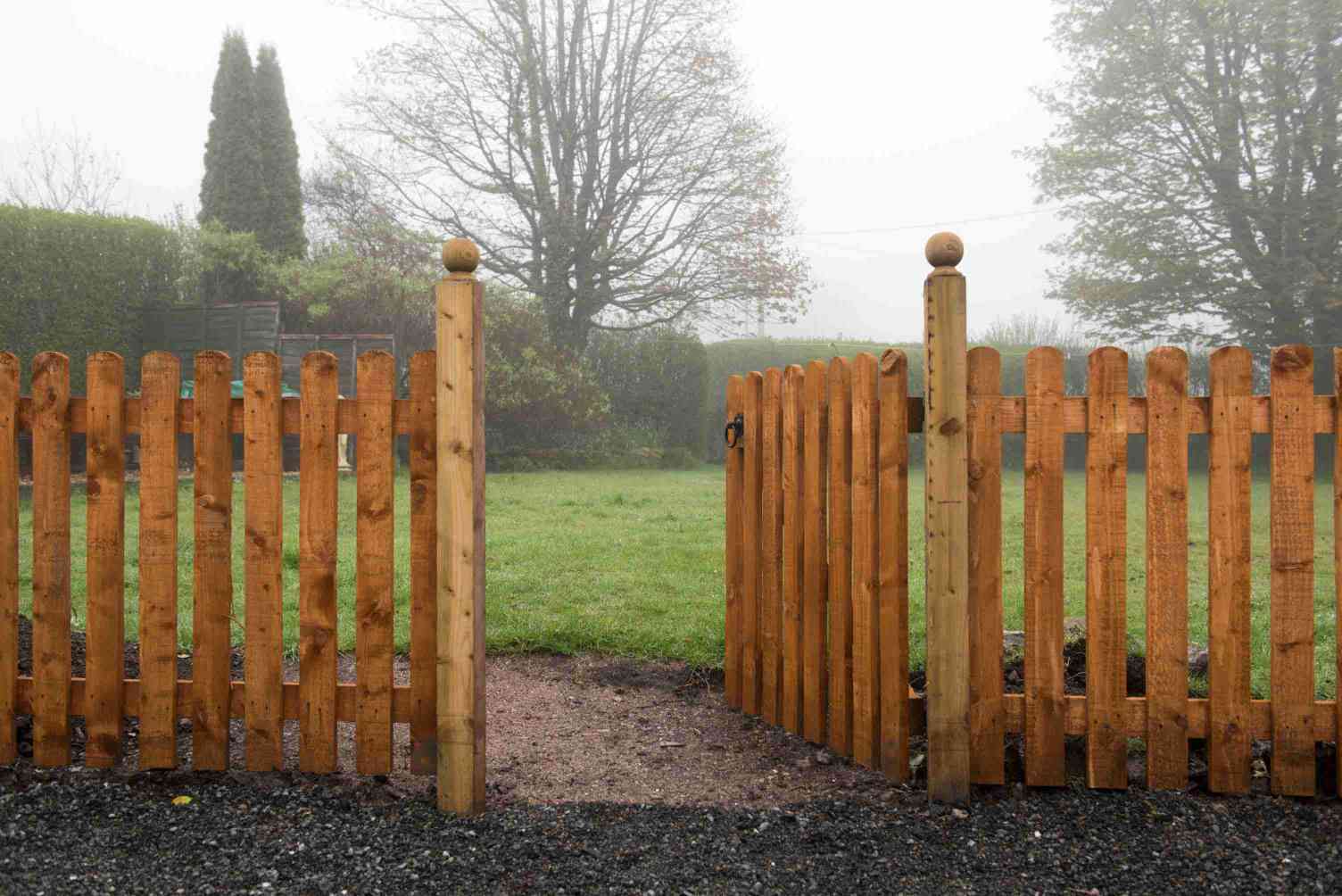

Wooden Fence with a gate

Following these steps, you can add a gate to an existing wood fence:

  • Removing the panels: First, carefully use either a hammer or a pry bar to remove the panels from the fence where you plan to add a gate. It’s essential to remove the correct panels. Once removed, measure and mark where you want the gate hinges to be and where the latch will go.
  • Cutting the fence: Next, using a hacksaw, cut along the marked line at a 50 to 60 degree angle. This angle will help ensure the gate opens and closes smoothly without getting stuck.
  • Installing the fence posts: If your existing posts are not positioned correctly, you may need to install new posts. Dig post holes at the appropriate locations, ensuring they are deep enough to provide stability (typically about one-third of the post length). Set the posts in concrete and allow them to cure before proceeding.
  • Installing the hinges and the barrel bolt: After cutting, it’s time to attach the hinges and barrel bolt to the marked spots on the fence posts:
    • Hinges allow the gate to swing open and close. Ensure they are securely fastened to the sturdy posts to support the gate’s weight.
    • Barrel bolts provide additional security by keeping the gate firmly closed. They’re sliding bolts that should be installed on the inside of the gate for extra reinforcement.
  • Testing: Test the gate to ensure it opens and closes smoothly without binding or sticking. Make any necessary adjustments to the hinges or latch to ensure proper functionality.

How To Add a Gate To an Existing Vinyl Fence

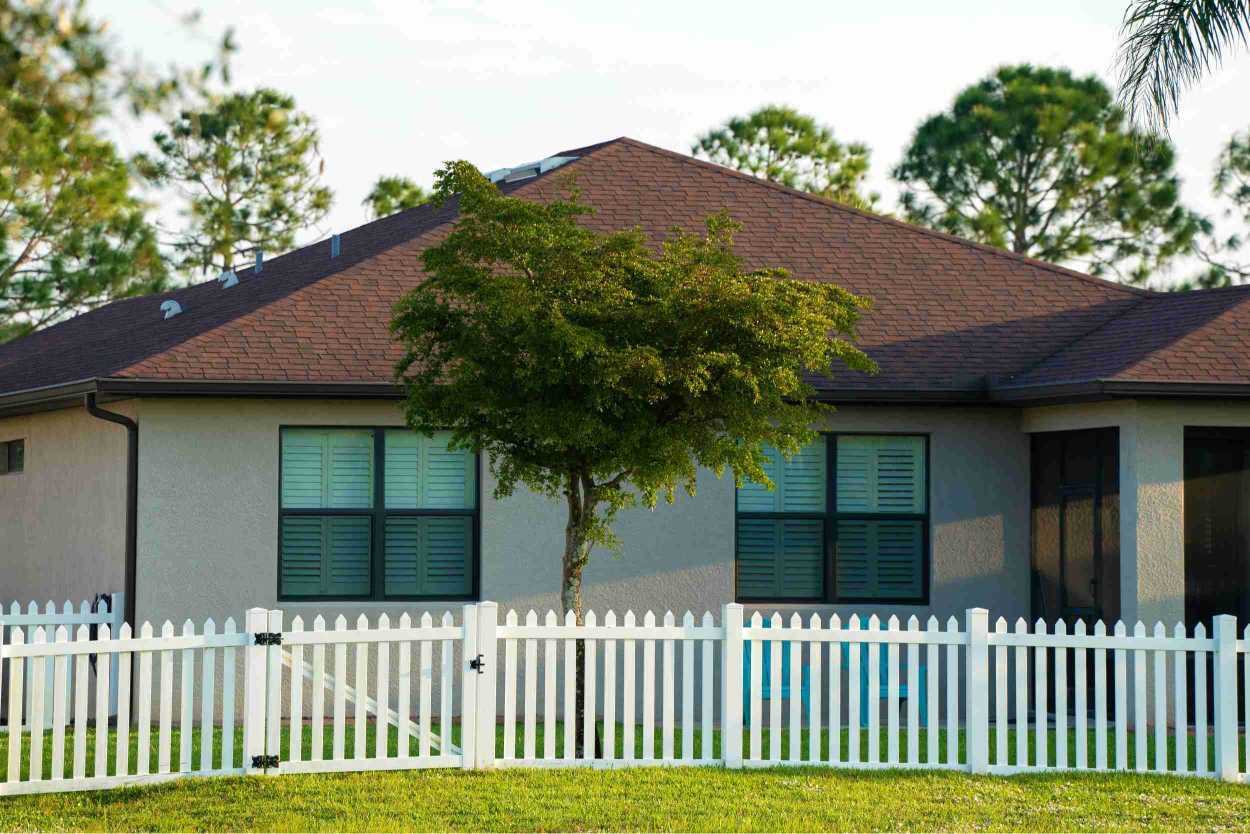

Vinyl picket fence with a gate

These steps will guide you in adding a gate to your vinyl fence. Some of them are like what you’d do with a wooden fence, while others are tweaked for vinyl:

  • Removing the panels: As with a wooden fence, carefully use either a hammer or a pry bar to remove the panels from the fence where you plan to add a gate. Ensure you remove the correct panels. Measure and mark where you want the gate hinges to be and where the latch will go.
  • Cutting the fence: Use a fine-tooth or circular saw with a fine blade to cut your vinyl fence along the marked line. As with a wooden fence, a 50 to 60-degree angle helps ensure the gate opens and closes smoothly without getting stuck.
  • Installing the fence posts: If your existing posts are not positioned correctly, you may need to install new ones. As with a wooden fence, begin by digging post holes at the appropriate locations, ensuring they are deep enough to provide stability, typically about one-third of the post length. Next, set the posts in concrete, allowing them to cure before proceeding.
  • Installing the hinges and the barrel bolt: After cutting, attach the hinges to the marked spots on the fence posts. Ensure you use hardware designed for vinyl fences, which often includes self-tapping screws or bolts. For added security, install the barrel bolt inside the gate.
  • Testing: Test the gate to ensure it opens and closes smoothly without binding or sticking. Make any necessary adjustments to the hinges or latch to ensure proper functionality.

Do You Need Planning Permission To Put a Gate In a Fence?

Minor alterations to existing fences, such as adding a gate, may not require a permit, especially if the fence height and location comply with local ordinances.

However, it’s essential to check with your local building department or planning office to determine the specific requirements in your area. Factors that may influence whether a permit is needed include the height and location of the fence, the type of gate being installed, and any restrictions related to property lines, easements, or neighborhood covenants.

Conclusion

Adding a gate to an existing fence is a straightforward project that can improve the functionality and aesthetics of your property. Following the specific instructions for wood and vinyl fences, you can successfully install a gate to meet your needs. Consulting with a professional gate installer can offer tailored options and expert advice if you are considering more advanced gate or entry solutions.
